Thrust 300kg Parallel Mount Electric Cylinder Linear Actuator
$100.00~1000.00

Product Description

Technical parameters:

Parallel mount electric cylinder linear actuator :
Thrust:300N
- medium speed 42mm/s
- 0.55 / 0.75 motor 380vac 50hz 3phase (Siemens/ABB)
- 300mm stroke
- with mounting legs
- include limit switch


Introduction:
The electric actuator is a reciprocating actuator driven by a motor. It is suitable for all linear motion which needs
reciprocating and pushing. It can swing and rotate by means of other connecting rods. It has overload
protection (mechanical and electrical overload protection) It is widely used in metallurgy, electric power, coal,
chemical and other industries. It is widely used in metallurgy, electric power, coal, chemical industry and so on,
with the advantages of light weight, strong pulling force, low noise, low energy consumption and convenient
installation and maintenance. , Especially for long-distance, high-altitude and dangerous situations instead of
hydraulic, pneumatic devices, can be operated separately on-site and centralized control.
Because the nut is fixed relative to the push rod, the screw moves the push rod linearly along the guide rail in
the guide sleeve so as to make the push rod reciprocate. As a result, Push and pull action.


Technical specification:
NO.TypeTrust
(kg)
Route
(mm)
Speed
(mm/s)
Motor380(V)Le(mm)contour dimension
(L*W*H)mm
weight
(kg)
TypePower
(w)
Revolution
(T/Min)
Electricity
(A)
LeMinLeMax
125-20-I2520048AO250244014000.23369569580*125*1187.5
225-20-II2520096AO250226028000.23369569580*125*1187.5
3100-40-I10040042AO562412014000.476401040858*152*20623
4100-40-II10040084AO562218028000.526401040858*152*20623
5300-50-I30050042AO633437014001.127451245998*170*22635
6300-50-II30050084AO633255028001.387451245998*170*22635
7500-50-I50050050AO713475014002.0277812781098*190*226.552
8500-50-II500500100AO7132110028002.677812781098*190*226.552
9700-60-I70060050AO713475014002.0280313431193*200*27963
10700-60-II700600100AO7132110028002.680313431193*200*27963
111000-60-I100060050JO2-21-4110014002.6888314831260*204*27175
121000-60-II1000600100JO2-21-2150028603.2488314831260*204*27175
131600-80-I160080050JO2-31-4220014004.9106318631535*302*33090
141600-80-II1600800100JO2-31-2300028608.06106318631535*302*33090

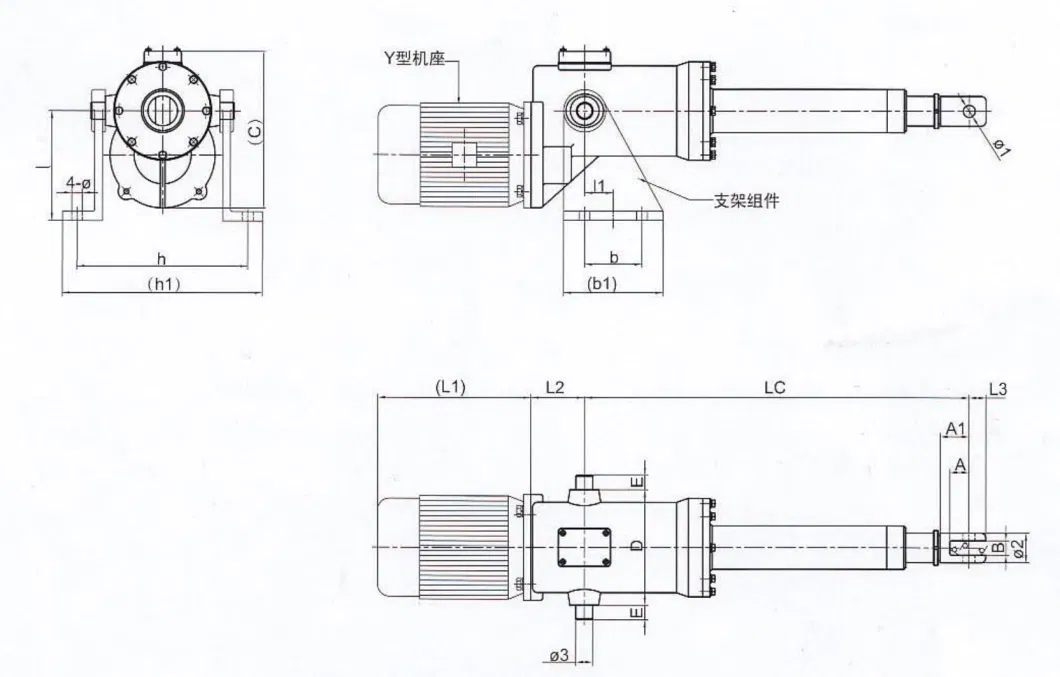

Structure:
Thrust 300kg Parallel Mount Electric Cylinder Linear ActuatorThrust 300kg Parallel Mount Electric Cylinder Linear Actuator

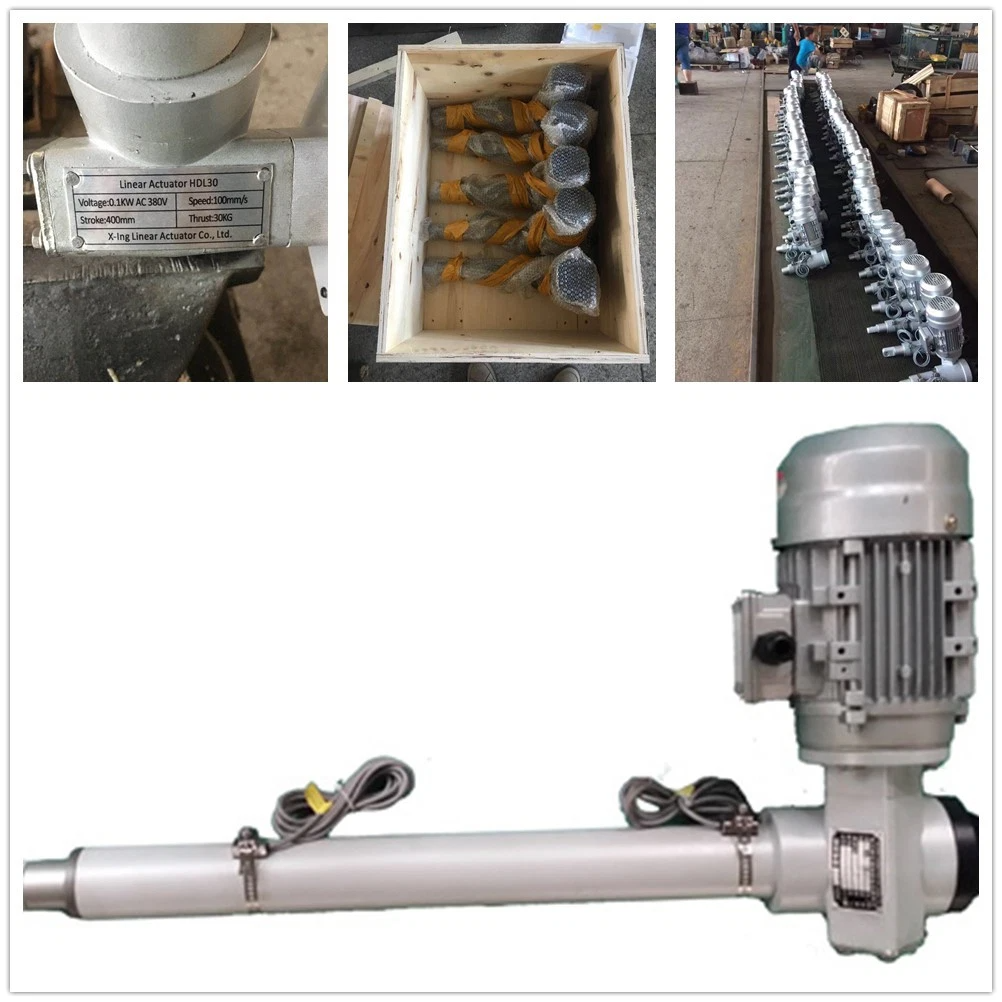

Workshop:
Thrust 300kg Parallel Mount Electric Cylinder Linear ActuatorThrust 300kg Parallel Mount Electric Cylinder Linear ActuatorThrust 300kg Parallel Mount Electric Cylinder Linear Actuator
