Product Description

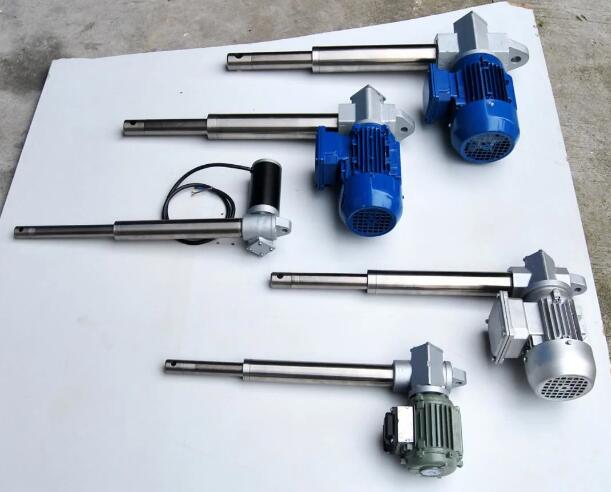

LW series Linear Actuator

Introduction:
High strength / high wear resistance material selection, high precision parts processing, advanced shell design
concept, creating high load capacity, impact resistance, low noise, long life quality products, able to work in
harsh industrial environments. Configuration is divided into ordinary tooth screw electric putter (working system
for 30%) and ball screw electric putter (working system 60%), the specific use of the conditions need to confirm
both sides.
The electric push rod drive can be equipped with DC motor 12/24/36 / 48V, single phase / three phase AC
motor 220 / 380V, stepper motor, servo motor, explosion-proof motor, gear motor.

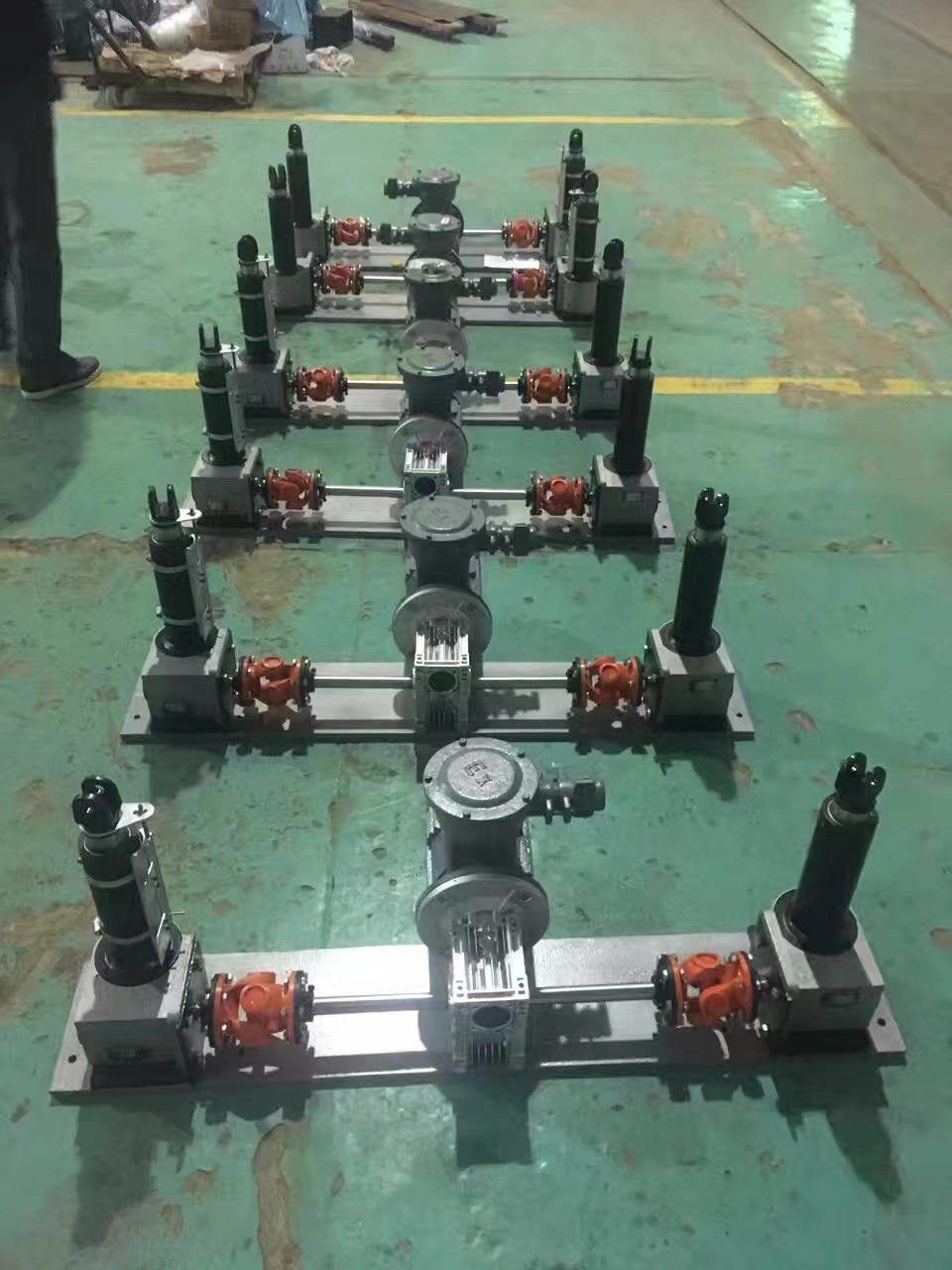

According to the self-locking coefficient, to determine the self-locking performance, can achieve absolute
synchronization drive multiple putts, configure the encoder can achieve multi-point precision positioning
(position accuracy 0.1mm, different configuration, different accuracy), many accessories, suitable for a variety
of special occasion.
Working environment temperature: 5 ºC - 40 ºC, for -40 ºC - +70 ºC, consulting business engineers.
Protection class: IP54, IP55, (IP56, IP65, IP66), Insulation class: F grade (H grade) Contains long life grease,
maintenance-free, large putter need appropriate grease.

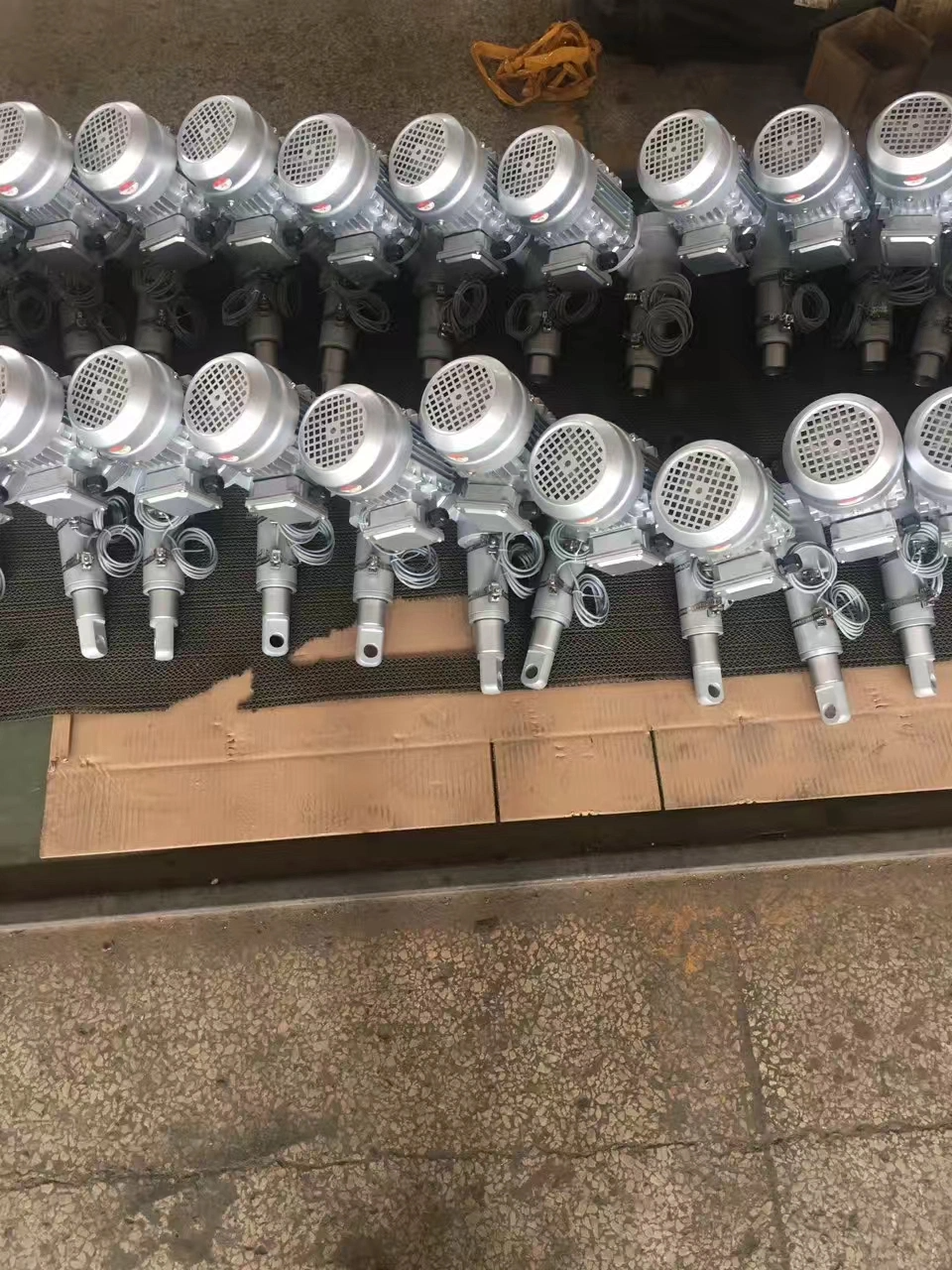

OUR WORKSHOP

OUR SALES TEAM


Our Service

1.Design Services
Our design team has experience in cardan shaft relating to product design and development. If you have any
needs for your new product or wish to make further improvements, we are here to offer our support.

2.Product Services
raw materials → Cutting → Forging →Rough machining →Shot blasting →Heat treatment →Testing Fashioning
→Cleaning→ Assembly→Packing→Shipping

3.Samples Procedure
We could develop the sample according to your requirement and amend the sample constantly to meet your
need.

4.Research & Development
We usually research the new needs of the market and develop the new model when there is new cars in the
market.

5.Quality Control
Every step should be special test by Professional Staff according to the standard of ISO9001 and TS16949.

6.Certification
Should your products require testing and certification to comply with international standards, we can arrange
this with independent, fully recognized testing companies such as SGS, Intertec, Bureau Veritas, Lloyd's
Register or the testing company of your choice.


Thanks for choosing X-ING as your reliable partner and please trust both of us will create a brilliant future!
