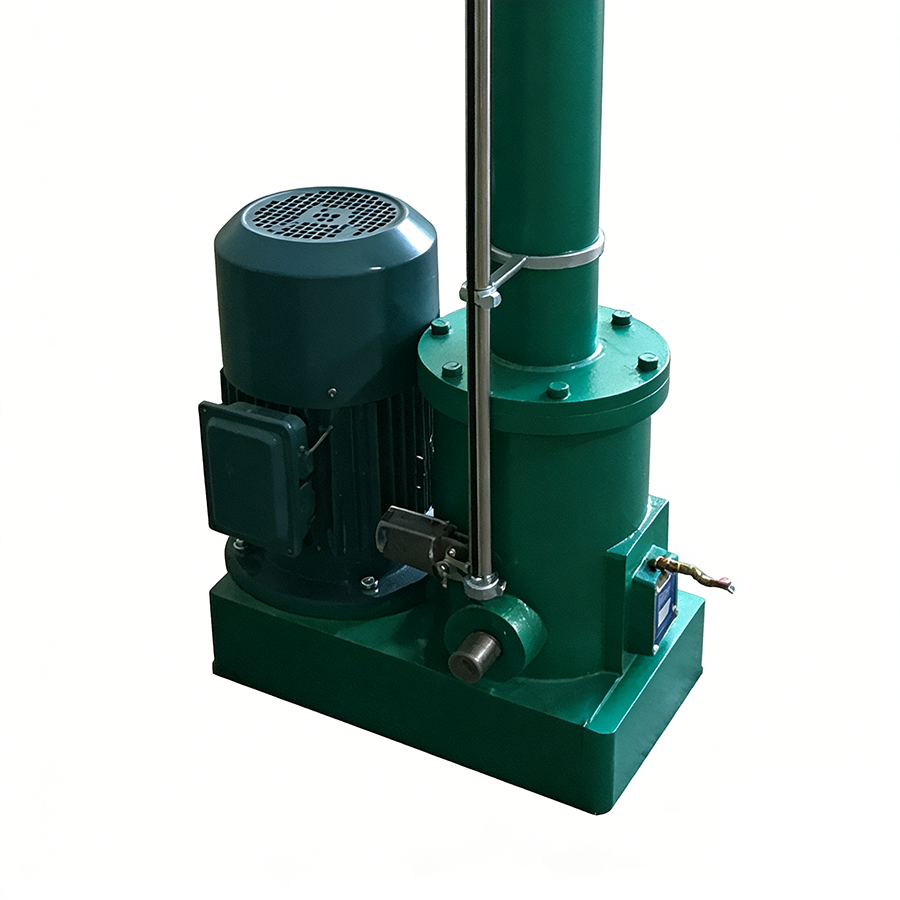

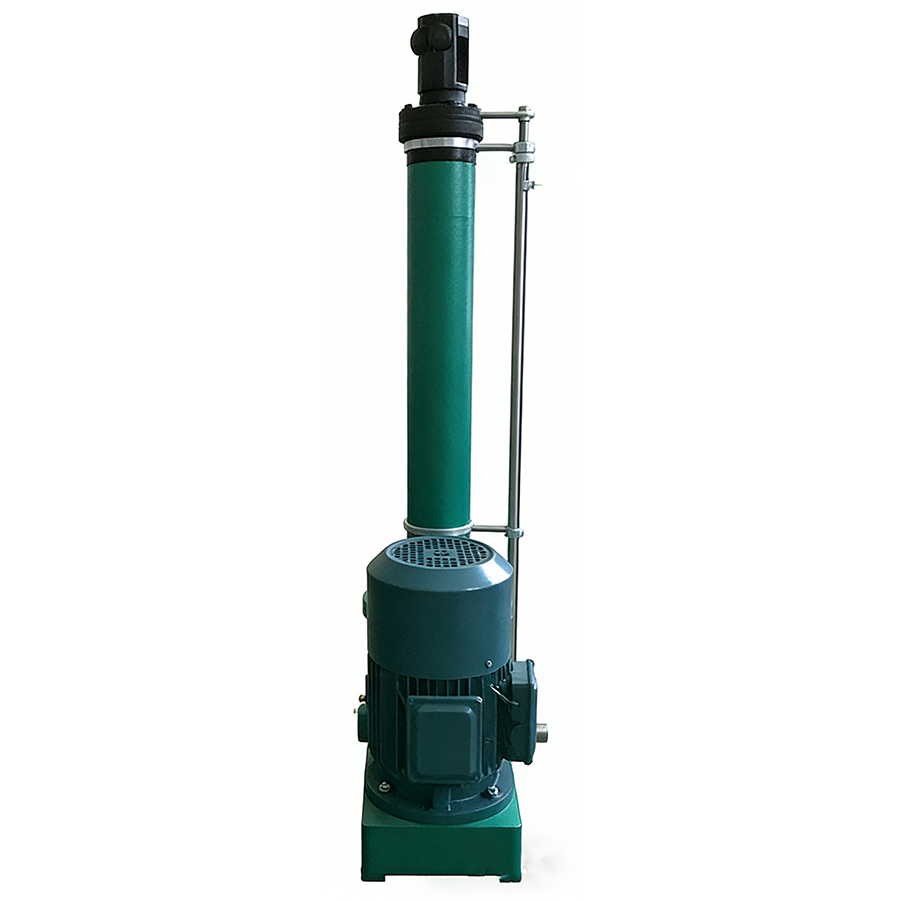

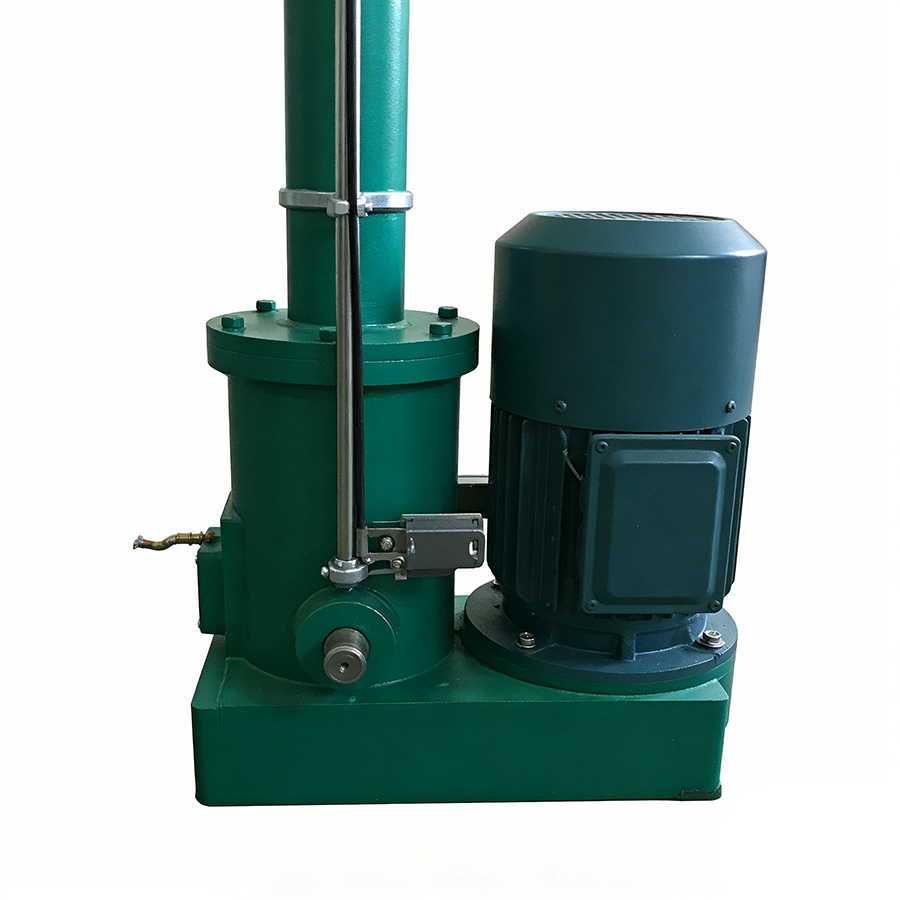

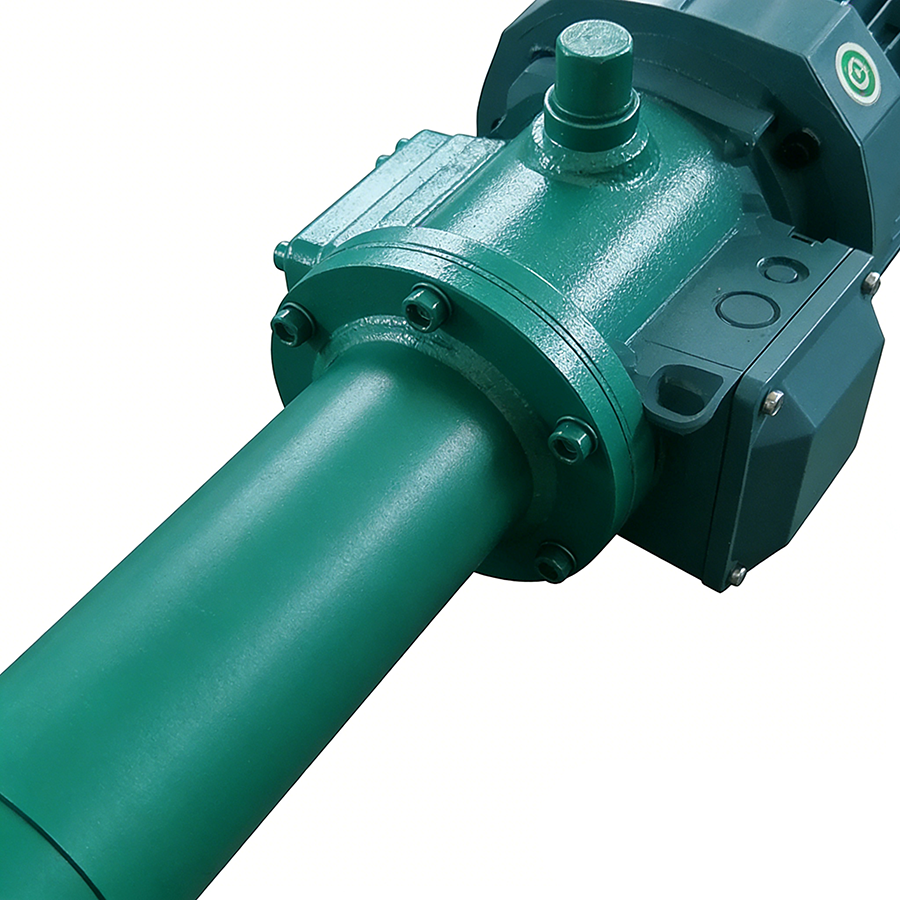

Electric Linear Actuator DTIIA15000-200-42

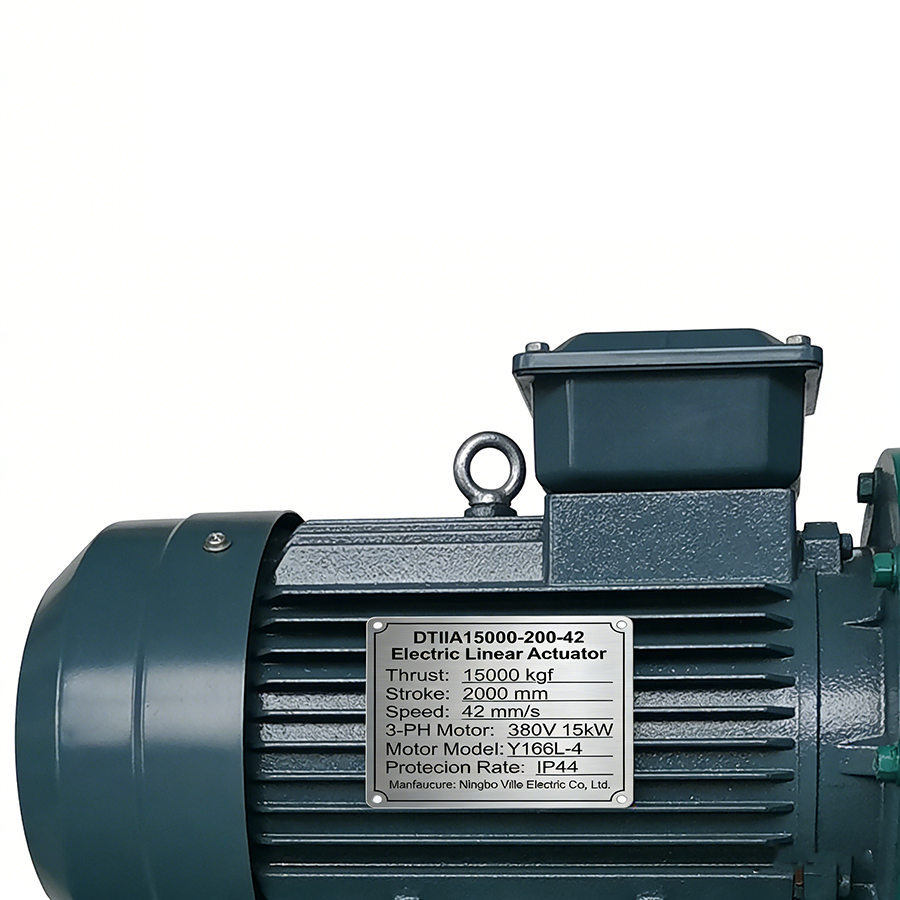

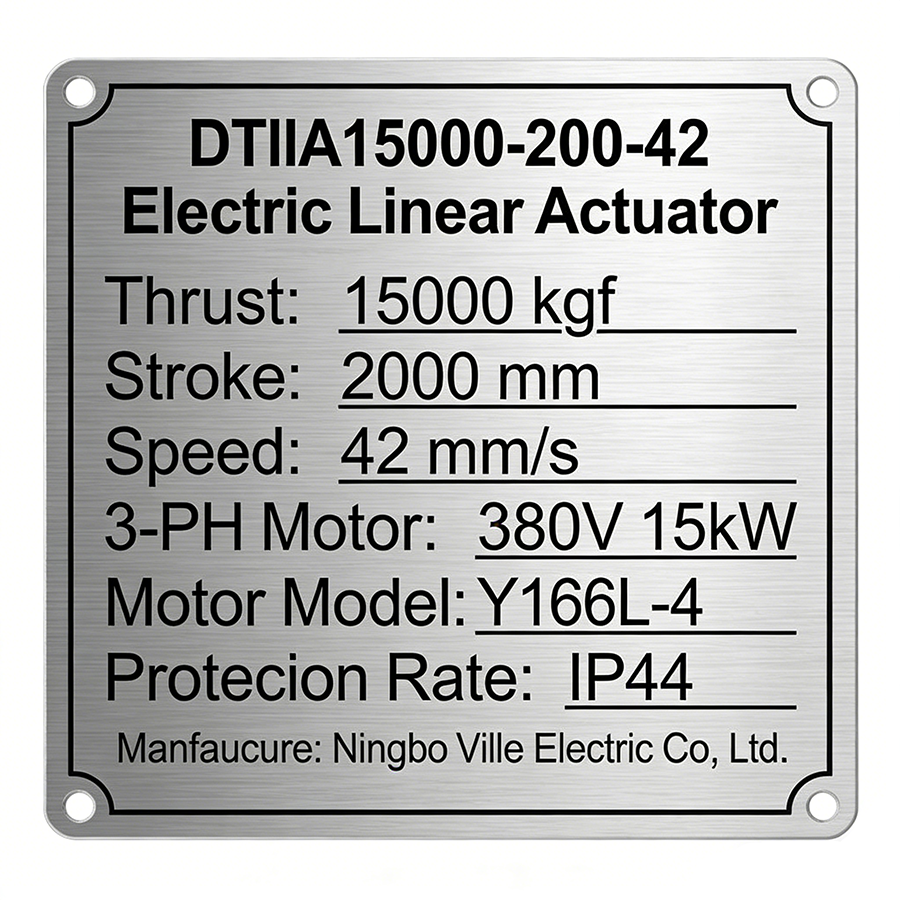

DTIIA15000-200-42 Electric Linear Actuator - Technical Data Sheet

Parameter Category	Parameter Name	Specification
Model & Basic Information	Model	DTIIA15000-200-42
Model & Basic Information	Product Name	Electric Linear Actuator
Performance Parameters	Thrust	15000 kgf
	Stroke	2000 mm
	Speed	42 mm/s
Motor Specifications	Phase	3-Phase (3-PH)
	Voltage	380V
	Power	15 kW
	Motor Model	Y160L-4
	Protection Class	IP44
Manufacturer	Manufacture	Ningbo Ville Electric Co., Ltd.
